Alpha Power a Leading Elevator Travelling Cable Manufacture in UAE provides premium CAT6 SFTP flat traveling cables for  ELV applications for Connecting CCTV in Lifts

We provide Lift Traveling Cable for CCTV engineered to deliver reliable data transmission and structural durability. These lift cables feature a twisted pair construction with stranded plain annealed copper conductors, sized at 23 AWG (12/0.15mm). Available in both single and quad runs, each cable is reinforced with steel wire to support extended suspended lengths, ensuring dependable performance in high-movement environments. Additionally, we also offer fiber optic flat cable options for high-rise buildinga high-speed data needs, ideal for advanced elevator and CCTV applications

How to Connect CCTV in Lift.:

Cable to Connect CCTV in lift is available in following options

Lift travelling Cable cat6 or Lift travelling cable cat6A is the Simple and Easy Choice if the Travel Length is under 60 Meters. Cat6A Lift Cable and Cat7 Lift Cable shall be use for High Band width Data Transmission, However the Distance is reduced and it is advise to use Fiber Optic Lift Travel Cable for such requirement.

Twisted Pairs Lift Travel Cable  or Lift Travelling Cable 12 core with the help of Media Converter for CCTV can be use for the greater Distances. Our Partner can be contacted for the Media Converters for Ethernet Conversion on Twisted Pair.

Our Cable is suitable for the Connecting CCTV in LIFT for Medium Height.  Connecting CCTV for High Rise Building can be achieved by LIFT Fiber Optic Cable.

Applications:

Designed for internal use, these CAT6 Elevator traveling cables exceed Category 6/Class E specifications, offering high-speed data transmission up to 60 meters in channel length. Ideal for lift camera cable and travel network cable needs, Alpha Power’s Cat6 flat traveling cable are available in standard lift cable drum lengths of 1000 or 500 meters, with customized lengths also available to meet specific requirements.

Cat 6 Lift Travelling Cable is available in Cut to Order Length on Request. for your requirement of CCTV Traveling cable for Elevator the Cutting Charges and Drum Charges will be applicable on Order.

Flat Cat6 Cable for lift is available in Ready Stock

Cat6 Flat Travelling Cable Price is dependent on the Quality and Build. Cheap Travel Cable does not last more than few months. The Cheap Lift Cable once broken can cause the accident and hence is commercial liability to Contractor.  Elevator Flat Traveling Cable has better Performance and handling in Compare to Rounded Commercial Cable which can be twisted to each other during the movement of Lift.

ALPHA Lift travelling Cable Price is more competitive compare to the quality in Market.

ALPHA does Produce the Customised Elevator Cable as per the Elevator Traveling Cable Specification

Download Datasheet

1 x Cat6
2 x Cat6A
2 x Cat6A
2P STP
4FO-2x2 (9/125 μm)

227IEC 71F(TVVB) Elevator Flat PVC Control Cable details

TYPE CONDUCTOR SECTION(MM2) CONDUCTOR CONSTRUCTION(MM2) OVERALL DIAMETER (MM) 70℃ INSULATED RESISTER (M Ω·KM) 20℃ CONDUCTOR DC RESISTER (Ω/KM)
227IEC71f(TVVB)
3×2.5
49/0.25
15.5×6.2
≥0.009
≤7.98
227IEC71f(TVVB)
4×1.5
30/0.25
18.5×7.5
≥0.010
≤13.3
227IEC71f(TVVB)
4×0.75
24/0.25
12.6×4.5
≥0.011
≤26.0
227IEC71f(TVVB)
12×1.0
40/0.18
32×5.0
≥0.010
≤19.5
227IEC71f(TVVB)
16×1.0
40/0.18
47.7×5.2
≥0.010
≤19.5
227IEC71f(TVVB)
12×0.75
30/0.18
34.5×4.8
≥0.011
≤26.0
227IEC71f(TVVB)
18×0.75
30/0.18
51.5×5.0
≥0.011
≤26.0
227IEC71f(TVVB)
20×0.75
24/0.2
56.5×4.6
≥0.011
≤26.0
227IEC71f(TVVB)
24×0.75
30/0.18
61.5×5.2
≥0.011
≤26.0
227IEC71f(TVVB)(G)
6×0.75
30/0.18
24.5×5.0
≥0.011
≤26.0
227IEC71f(TVVB)(G)
12×0.75
30/0.18
44×5.0
≥0.011
≤26.0
227IEC71f(TVVB)(G)
18×1.0
40/0.18
58.1×5.0
≥0.010
≤19.5
227IEC71f(TVVB)(G)
24×0.75
30/0.18
70.6×5.0
≥0.011
≤26.0
227IEC71f(TVVB)(G)
24×0.75
30/0.18
73.6×5.5
≥0.011
≤26.0

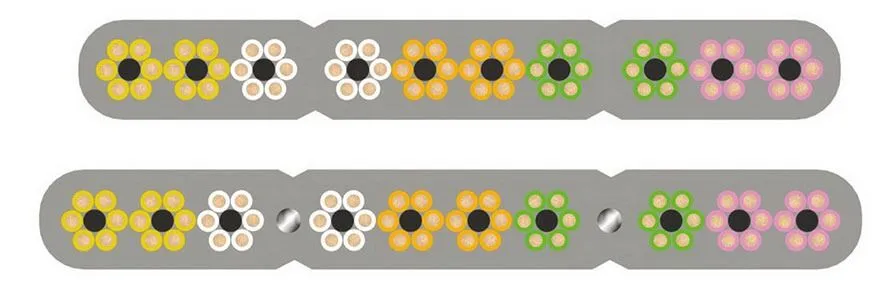

TVVB TVVBG Elevator Flat PVC Control Cable

TYPE CONDUCTOR SECTION(MM2) CONDUCTOR CONSTRUCTION(MM2) OVERALL DIAMETER (MM) 70℃ INSULATED RESISTER (M Ω·KM) 20℃ CONDUCTOR DC RESISTER (Ω/KM)
TVVB
20×0.75
30/0.18
29.9×9.0
≥0.011
≤26.0
TVVB
24×0.75
30/0.18
30.5×9.1
≥0.011
≤26.0
TVVB
2×1.0+TV(SYV75-4)
7/0.24+50/0.16
15.8×7.6
≥0.010
≤19.5
TVVB
20×0.75+(2×2)×0.75
30/0.18
44.2×9.1
≥0.011
≤26.0
TVVB
36×0.75+(2×2)×0.75
30/0.18
62×10.0
≥0.011
≤26.0
TVVB
48×0.75+(2×2)×0.75
30/0.18
68.5×10.0
≥0.011
≤26.0
TVVB
30×0.75
30/0.18
53×8.6
≥0.011
≤26.0
TVVB
36×0.75
30/0.18
54.0×9.5
≥0.011
≤26.0
TVVB
40×0.75
30/0.18
58×8.2
≥0.011
≤26.0
TVVBG
42×0.75
30/0.18
66.6×9.7
≥0.011
≤26.0
TVVBG
48×0.75
30/0.18
67.2×9.5
≥0.011
≤26.0
TVVBG
60×0.75
30/0.18
80.0×9.5
≥0.010
≤19.5
TVVBG
30×0.75
30/0.18
44.2×9.1
≥0.011
≤26.0
TVVBG
36×0.75
30/0.18
42.5×9.0
≥0.011
≤26.0
TVVBG
40×0.75
30/0.18
5.25×9.0
≥0.011
≤26.0
TVVBG
40×0.75
30/0.18
54.1×9.7
≥0.011
≤26.0
TVVBG
40×0.75
30/0.18
58.0×9.6
≥0.011
≤26.0

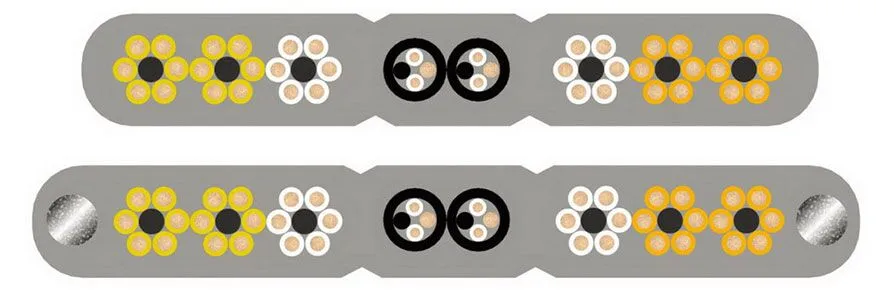

TVVBP TVVBPG Elevator Flat PVC Control Cable

TYPE CONDUCTOR SECTION(MM2) CONDUCTOR CONSTRUCTION(MM2) OVERALL DIAMETER (MM) 70℃ INSULATED RESISTER (M Ω·KM) 20℃ CONDUCTOR DC RESISTER (Ω/KM)
TVVB
36×0.75+(2×2P)×0.75
30/0.18
62.0×9.8
≥0.011
≤26.0
TVVB
36×0.75+(2×2P)×0.75+TV(STV75-4)
30/0.18
61.5×9.0
≥0.011
≤26.0
TVVB
42×0.75+(2×2P)×0.75
30/0.18
61.5×9.0
≥0.010
≤26.0
TVVB
48×0.75+(2×2P)×0.75
30/0.18
68.5×10.0
≥0.011
≤26.0
TVVB
30×0.75+(2×2)×0.75
30/0.18
52.5×9.0
≥0.011
≤26.0
TVVB
20×0.75+(2×2)×0.75
30/0.18
44.2×9.1
≥0.011
≤26.0
TVVB
24×0.75+(2×2P)×0.75
30/0.18
42.5×9.0
≥0.011
≤26.0
TVVB
48×0.75+(2×2P)×0.75
30/0.18
68.5×9.5
≥0.011
≤26.0
TVVB
36×0.75+(2×2P)×0.75
30/0.18
63.0×9.2
≥0.011
≤26.0
TVVBG
36×0.75+(2×2P)×0.75+TV(SYV75-4)
30/0.18
72.5×9.9
≥0.011
≤26.0
TVVBG
42×0.75+(2×2P)×0.75
30/0.18
75.0×9.8
≥0.011
≤26.0
TVVBG
48×0.75+(2×2P)×0.75
40/0.18
80.0×9.5
≥0.010
≤26.0
TVVBG
20×0.75+(2×2P)×0.75
30/0.18
51.8×8.9
≥0.011
≤26.0
TVVBG
24×0.75+(2×2P)×0.75
30/0.18
64.0×10.2
≥0.011
≤26.0
TVVBG
30×0.75+(2×2P)×0.75
30/0.18
58.0×8.2
≥0.011
≤26.0
TVVBG
40×0.75+(2×2P)×0.75
30/0.18
74.0×9.0
≥0.011
≤26.0
